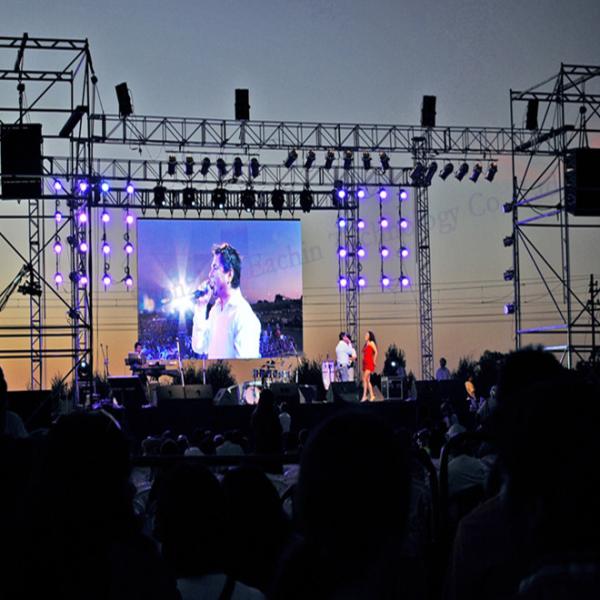

outdoor led display screen stage background led video wall for
concert
Applied to place where it requires high-definition display and fast
installation such as outdoor advertising, television studio,
concert, exhibition, etc.
1. Ultrathin and lightweight: Each cabinet weights only 7-9kg, easy
to install and transport.
2. Noiseless: Iron cabinets, fanless design with noiseless power
supply.
3. Seamless: High precision CNC machining, precision up to 0.1mm.
4. Fast installation and dismantling: connection lock between
cabinets are patented, closely combined, safe, reliable and
adjustable, 50 cabinets can be installed in one hour.
5. Front service: use patented spring bead positioning pin and
connection lock, any defective cabinet can be removed easily
without dismantling the whole screen.
6. Mask without screws: mask fixation uses patented snap joints
instead of screws, it takes only 25 seconds to assemble one module,
much more convenient for maintenance.
7. Unique blanking circuit: high definition display by eliminating
the row/line after-image without damaging the LED lamps.
8. Energy saving: low electric current, high-bright lamps, equipped
with PFC switching power supply,save 30% electricity,
9. High refresh rate, high gray level: it can reach 16bit by using
PWM driving IC, refresh rate is more than 4000HZ, the gray level is
still high even under the condition of low brightness.
10. Color correction: support dot-to-dot correction, guarantee the
consistence of LED color and brightnes, No chromatic aberration for
new screens.
11. Dual back-up: both power supply and system dual back-up are
optional, reliable performance.
| Parameter | GTKE080-D |
| Pixel | Module size | 320*160mm |
| Pixel pitch | 8 mm |
| pixels Density | 15625 dots/sqm |
| Pixel configuration | 1R1G1B |
| Brightness of single LED | R: 800mcd, G: 2400mcd, B: 600mcd |
| Pixel resolution | 40*20 |
| Max Power consumption | 40 w |
| Weight | 0.75 kg |
| Working voltage | DC5V |
| Cabinet | Dimension | 640*640mm |
| Power supply | 5V/40A |
| thermal discharge | fan |
| Total Weight | 55 kgs |
| Best viewing distance | 8 ~ 50m |
| Best viewing angle | 120°(H) /90°(V) |
| Ambient Temperature | storage: - 35 ~ + 85 |
| working: - 20 ~ + 65 |
| Working humidity | 90 ~ 95% |
| Power | Working voltage | AC220V / AC110V |
| Average Power consumption | 450 ~ 610 w/sqm |
| Max. Power consumption | ≤ 950 w/sqm |
| Current | ≤20mA(single LED) |
| Control system | CPU | Pentium 4 or above |
| Operating system | WIN 98/2000/NT/XP/me |
| control method | Synchronization, asynchronism are available |
| Main technical parameter | Driving device | Constant Current Driver IC |
| Drive type | 1/4 scan Driving |
| Refresh frequency | ≥120Hz/s |
| Grey scale/colors | 256 levels of each color(R/G/B)/ 16.7M colors |
| Brightness of white balance | ≥7,000cd/sqm |
| Brightness adjustment | 255 levels of each color(R/G/B) by software |
| Video Signal | PAL/NTSC |
| Control system | DVI graphic card + full color controller card |
| MTBF | ≥10,000 hours |
| Life span | About 100,000 hours |
| Flatness | Tolerance of interpixel≤0.3mm |
| Tolerance of modules clearance ≤1.5mm |
| Display Mode | 800*600; 1024*768 |
| Communication distance | ≥100 meters (UTP-5 CABLE) |
| Software | LED media player | |
Die-casting aluminum cabinet:
Accessories:
FAQ
1. How to choose the led display most suitable for my project? And
what is the best price you can offer?
First of all, you’d better to know the application of the screen ( Indoor or
Outdoor); the size of the screen would be ( Length & Height); what
will the screen will be used for ( advertising, on live event, need
to be installed somewhere permanently or for rental use). We will
check out the best price and screen upon your conditions
2. What is your lead time?
Under the normal condition, sample order for 3-7 working days,
regarding mass order, if we have available raw material,the lead
time will around 15 working days, otherwise, would be 20-30 working
days
3. What is your payment method?
Our usually practice for payment is by T/T for the mass order and
also we do the trade assurance ( Provided by Alibaba and Gteak to
make sure your payment, shipment, goods’ quality security and ensurance)
4. What is your shipping and packing way?
Our standard packing for modules are carton box and for the led
cabinet, we do wood box or flight case as per customers’ requests. For the mass order ( fit for a container), we do shipment
by Sea and for others usually by express or airlin
5. Can i place a sample order before i decide to do the mass
production?
Yes, we acceptable sample orders, please let us know your detail
request then we will send you the sample asap for confirmatio
6. Can i have a free sample?
We offer free sample for some models, please advise what you need
to see if we have available free samples here to be sent
Our Services
1)Your inquiry related to our products or price will be replied in
24hrs
2)OEM&ODM,any your customized lightings we can help you to
design and put into product
3)Distributoership are offered for your unique design and some our
current models
4)Protection of your sales area,ideas of design and all your
private information
5)Top Quality+Reasonable Price+Responsible After Service=Successful
& Win
