SMD outdoor led led panel 3m x 2m for the shopping mall advertising
display
Advantage
P5 SMD outdoor led panel 3M*2M
Adopted high quality LED to make sure the brightness always in a
high level, FO series can produce crystal clear images
in virtually any lighting conditions, even in the sun directly
Stable and Reliable with IP65 Ratin for the outdoor led panel
FO Series has successfully passed Environmental reliability test
and waterproof test, which proved that this product can withstand
the most strict weather conditions.

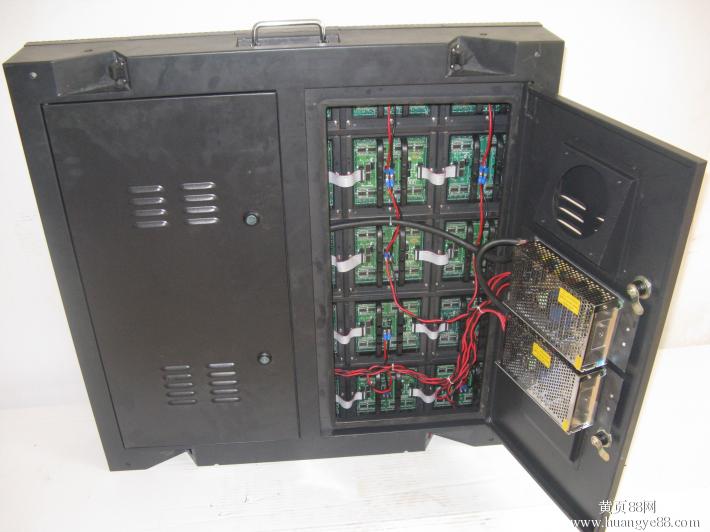

Good Heat Dissipation with Scientific Structure Design
Enough space with 4 high efficient fans increase dissipation
capability, ensure the stability and reliability even for long time
continuous use, and prolong the lifespan of the led display.
Application
outdoor led led panel 3m*2m are specifically designed for fixed
installations in Bussiness Center,
Plaza,Shopping mall,Theme Park,Government Project,Airport,Train/Bus
Station,Stadium,Expo Center etc. And with the ability to shape our
LED display to any size or shape, you can place them anywhere to
achieve maximum exposure. You’re viewing audience will not only
engage your content –they’ll embrace it.
| Parameter | GTKE050-S |
Basic
Parameter | Pixel Configuration | SMD 3 in 1 |
| Pixel Pitch (mm) | 5mm |
| Pixel Density | 27,777 pixels/m2 |
| Module Dimension (W*H) | 320*160MM |
| Cabinet Dimension(W*H*D) | 960*960*120mm |
| Weight | 50KG/sqm |
| Cabinet Material | iron cabinet |
Optical
Parameter | Color Grayscale (bit) | 16bit |
| Frame Frequency (Hz) | 50/60Hz |
| Brightness (nit) | 5,000 cd/m2 |
| Viewing angle | 140°/140° |
| Flatness error | ≤0.5mm |
Using
Parameter | Working Voltage (V) | AC: 100-240V(50/60 Hz) |
| Max. Power Consumption | 450 W/cabinet |
| Storage Temperature (°C) | -20~60 |
| Operating Temperature (°C) | -10~40 |
| Storage Humidity (RH) | 10%~90% |
| Operating Humidity (RH) | 10%~90% |
| IP Rating (Front / Rear) | IP65 |
| Lifetime Typical Value (hrs) | 50,000 |
Applied to place where it requires high-definition display and fast
installation such as outdoor advertising, television studio,
concert, exhibition, etc.
1. Ultrathin and lightweight: Each cabinet weights only 7-9kg, easy
to install and transport.
2. Noiseless: Iron cabinets, fanless design with noiseless power
supply.
3. Seamless: High precision CNC machining, precision up to 0.1mm.
4. Fast installation and dismantling: connection lock between
cabinets are patented, closely combined, safe, reliable and
adjustable, 50 cabinets can be installed in one hour.
5. Front service: use patented spring bead positioning pin and
connection lock, any defective cabinet can be removed easily
without dismantling the whole screen.
6. Mask without screws: mask fixation uses patented snap joints
instead of screws, it takes only 25 seconds to assemble one module,
much more convenient for maintenance.
7. Unique blanking circuit: high definition display by eliminating
the row/line after-image without damaging the LED lamps.
8. Energy saving: low electric current, high-bright lamps, equipped
with PFC switching power supply,save 30% electricity,
9. High refresh rate, high gray level: it can reach 16bit by using
PWM driving IC, refresh rate is more than 4000HZ, the gray level is
still high even under the condition of low brightness.
10. Color correction: support dot-to-dot correction, guarantee the
consistence of LED color and brightnes, No chromatic aberration for
new screens.
11. Dual back-up: both power supply and system dual back-up are
optional, reliable performance.
FAQ
1. Can we make any size of LED OUTDOOR?
Nope, according the led module size and cabient size, such as
outdoor led led panel 3m x 2m , the smallest unit size is:
640*640mm.
2,What's best size of outdoor led panel?
The best aspect ratio of LED display outdoor are W16:H9 or W4:H3
3,How to install led panel outdoor?
We will provide drawing of steel structure or hanging truss,then
you can install led display outdoor very easy.
4,How to order outdoor led panel?
Please tell me indoor or outdoor do you need,size of led
display,where will be application of led display.
5,How to shipment?
Normally,our led panel outdoor will be shipped by air and express (DHL,Fedex.UPS) and in container by sea for the mass order
6,How to do payment?
You can transfer payment by TT,West union, recommand Alibaba Trade
Assurance.
Payment term, we recommand Alibaba Trade Assurance.
With Trade Assurance, your trading problems are solved. If your
products are not shipped on time or the product quality does not
meet the standards set in your contract, Alibaba.com will refund
the covered amount of your payment.
